Home > Power Transmission Poles >

Power Transmission Electric Steel Pole With Average Galvanized Coating 80-100um

Product Categories
Jiangsu hongguang steel pole co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Power Transmission Electric Steel Pole With Average Galvanized Coating 80-100um

  • 1
  • 2

Brand Name : JSHG

Model Number : HG-SP-110KV

Certification : ISO/CNAS/IAF/CA

Place of Origin : China

MOQ : Negotiable

Price : negotiation

Payment Terms : L/C, T/T or Western Union

Supply Ability : 3,000 Metric Tons per Month

Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed

Packaging Details : * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.

Material : Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Once Forming : 16m Once forming without joint

Voltage Grade : 110KV

Joint : Joint with flange mode

Shape : Conical

Wall thickness : 3-5mm

Galvanization : Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Contact Now

Power Transmission Poles Electric Steel Pole With Average Galvanized Coating 80-100um

Product Description:

Products

  • Power Transmission Poles Electric Steel Pole With Average Galvanized Coating 80-100um
Application

  • Electrical Power Transformer Substation
Standrad

  • NEA Standard
Painting

  • According to clients' request
Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered
Galvanization
  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment

Product Advantages:

1). Short Construction Cycle
2). Less Land Occupation
3). Low Overall Cost
4). Easy Installation and Maintenance
5). Weather Resistance
6). Anti-corrosion
7). ODM & OEM are available
8). Capable to Handle Volume Orders
9). Provide Professional Design by Our Experienced R&D Engineers

Key Specification:

1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100µm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2015

Power Transmission Electric Steel Pole With Average Galvanized Coating 80-100um

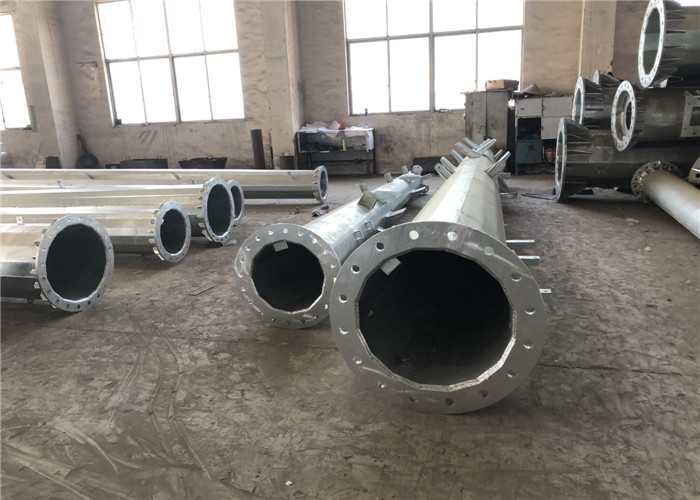

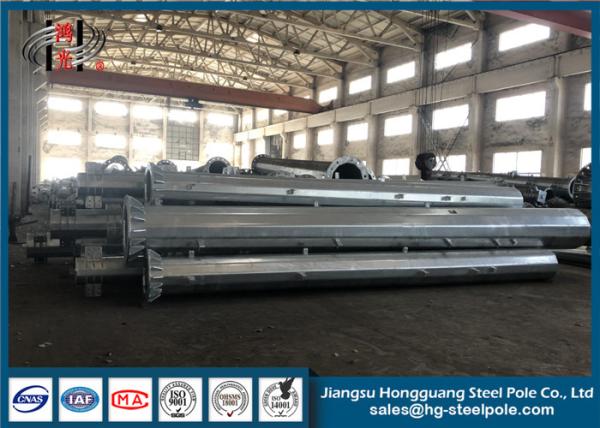

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86

Contact Us:

Jiangsu Hongguang Steel Pole Co., Ltd.

Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

Telphone: +86 510 878 441 56

Fax: +86 510 878 435 28

Trade manager ID: cnhgsteelpole

Skype: tangjia870124

Company youtube link: https://youtu.be/C9sHcnm3RKI

Please feel free to contact us!
